Kia Optima Hybrid: Blower / Blower Unit Components and Components Location

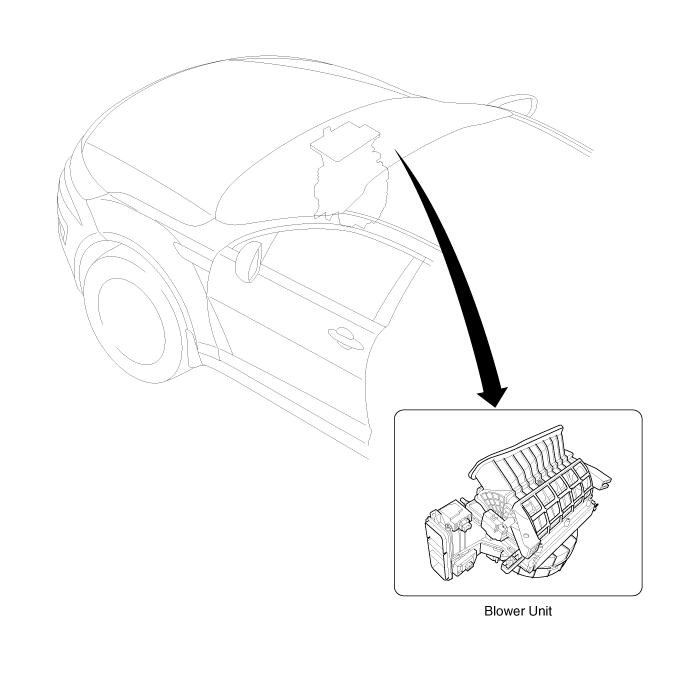

Component Location

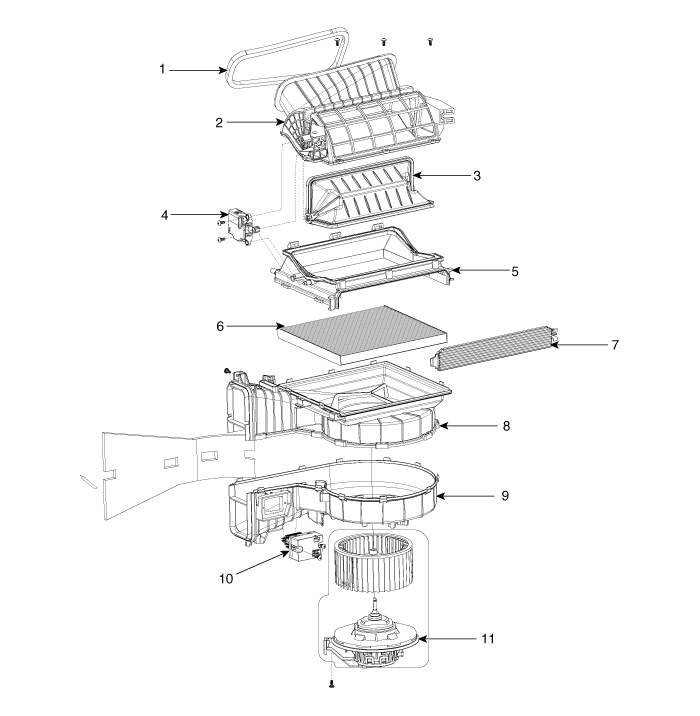

Components

1. Duct Seal
2. Duct Case
3. Inlet Door
4. Intake Actuator
5. Inlet Duct Case (A)
6. Climate Control Air Filter
7. Climate Control Air Filter Cover
8. Blower Upper Case
9. Blower Lower Case
10. PWM Blower Module
11. Blower Motor

Blower

...

Blower Unit Repair procedures

Replacement 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad and heater blower unit. (Refer to HA group-heater unit) 3. Remove the heater blower unit from crash pad. (Refer to HA ...
