Kia Optima Hybrid: Bumper / Rear Bumper Components and Components Location

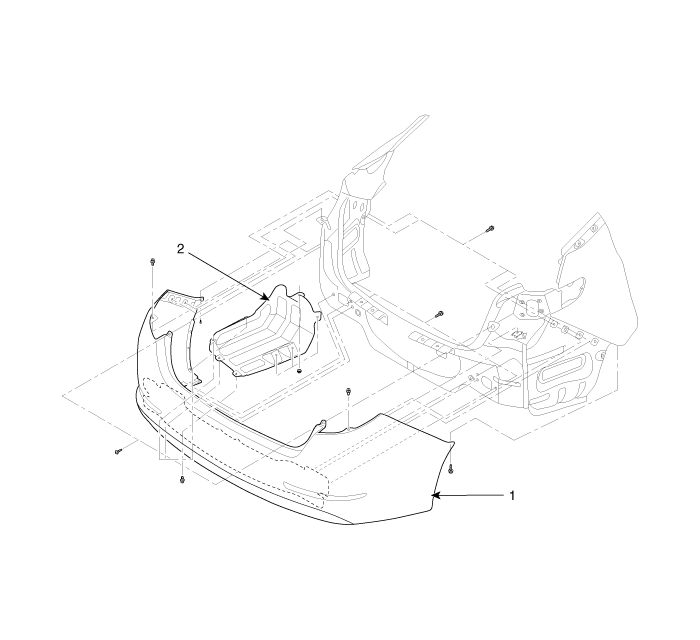

Components(1)

1. Rear bumper cover
2. Rear under cover assembly

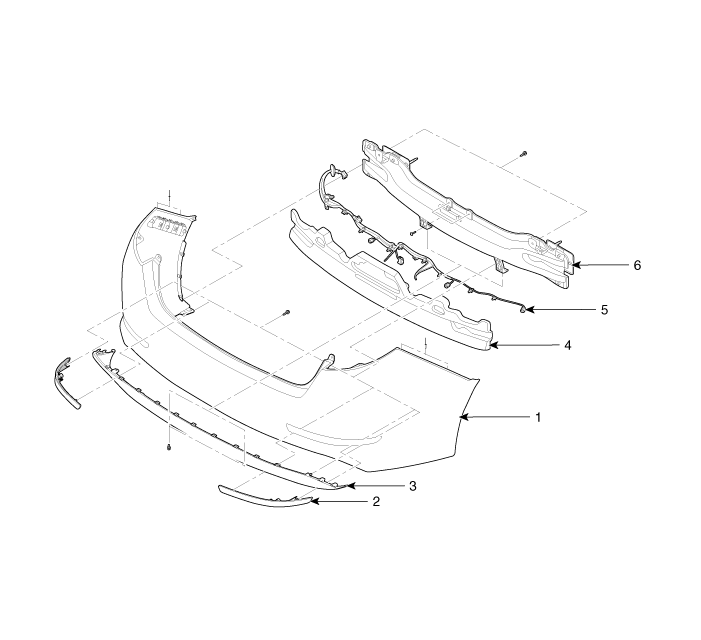

Components(2)

1. Rear bumper cover
2. Rear reflector
3. Rear bumper lower cover
4. Rear bumper energy absorber
5. Wiring harness
6. Rear bumper beam assembly

Front Bumper Repair procedures

Replacement     • Put on gloves to protect your hands. • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface. • Take care not to bend or ...

Rear Bumper Repair procedures

Replacement     • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface. • Put on gloves to protect your hands. • Take care not to bend or ...
