Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Body (Interior and Exterior) / Interior / Interior Trim Components and Components Location

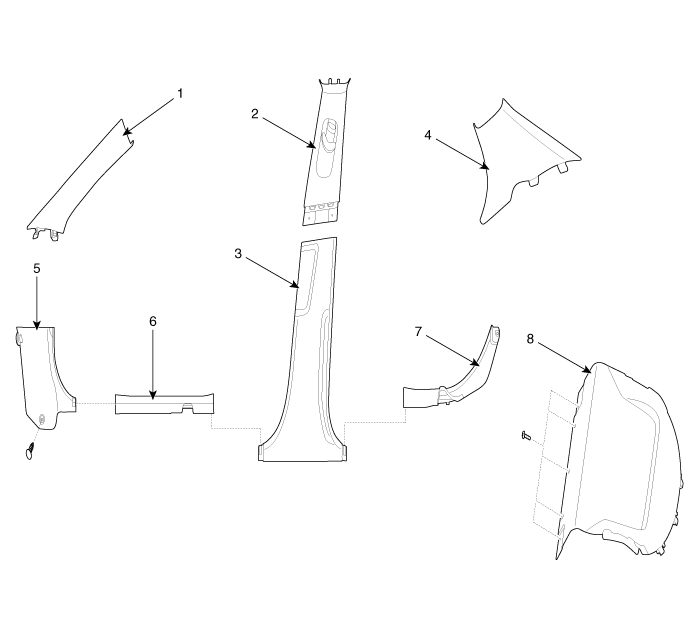

Components

1. Front pillar trim
2. Center pillar upper trim
3. Center pillar lower trim
4. Rear pillar trim
5. Cowl side trim
6. Front door scuff trim
7. Rear door scuff trim
8. Rear package tray trim

Roof Trim Repair procedures

Replacement Sunvisor Replacement     • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface. • Put on gloves to protect your hands. 1. Loosen ...

Interior Trim Repair procedures

Replacement Door Scuff Trim Replacement     • Put on gloves to protect your hands. • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface. • ...

Other information:

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual: Electric Parking Brake (EPB) Schematic Diagrams


EPB Circuit Diagram (1) EPB Circuit Diagram (2) EPB connector input/output Pin DescriptionPin Description1--21--2--22YC-CAN (Low)3--23WC-CAN (High)4--24WElectric Parking Brake Switch (SW1)5--25L/OElectric Parking Brake Switch (SW2)6-26G/OElectric Parking Brake Switch (SW3)7--27Y/OElectric Parking ...

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual: NVLD(Natural Vacuum Leakage Detection) Repair procedures


Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal. 2. Disconnect the NVLD connector (A). 3. Disconnect the ventilation hoses (B,C). 4. Remove the NVLD after by loosening the bolts (A). Installation • Install the component with the specified torques. • Note that ...
