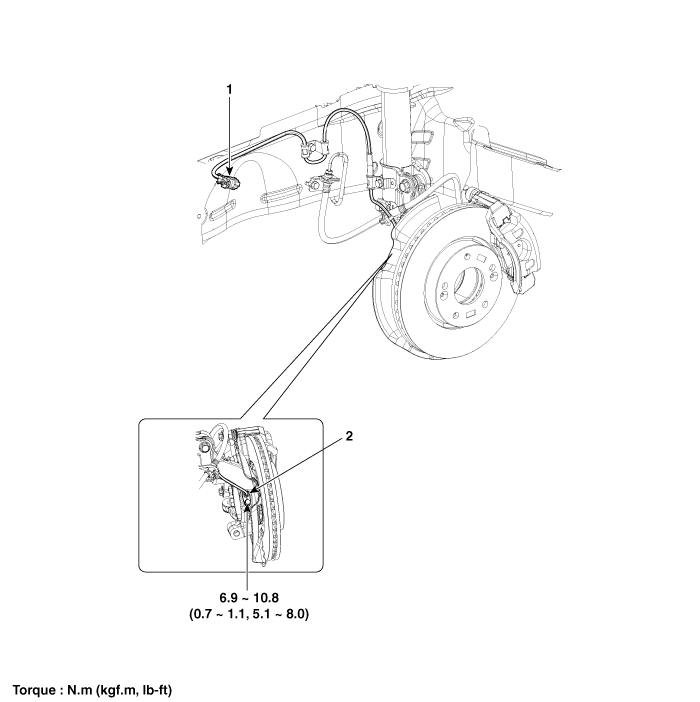

Components

1. Front wheel speed sensor connector
2. Front wheel speed sensor

ESC(Electronic Stability Control) System

...

Front Wheel Speed Sensor Repair procedures

Removal 1. Remove the front wheel and tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) 2. Remove the front wheel speed sensor mounting bolt (A). Tightening torque: 6.9 ~ ...
