Kia Optima Hybrid: Engine And Transaxle Assembly / Engine Mounting Components and Components Location - Revised

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Engine Mechanical System / Engine And Transaxle Assembly / Engine Mounting Components and Components Location - Revised

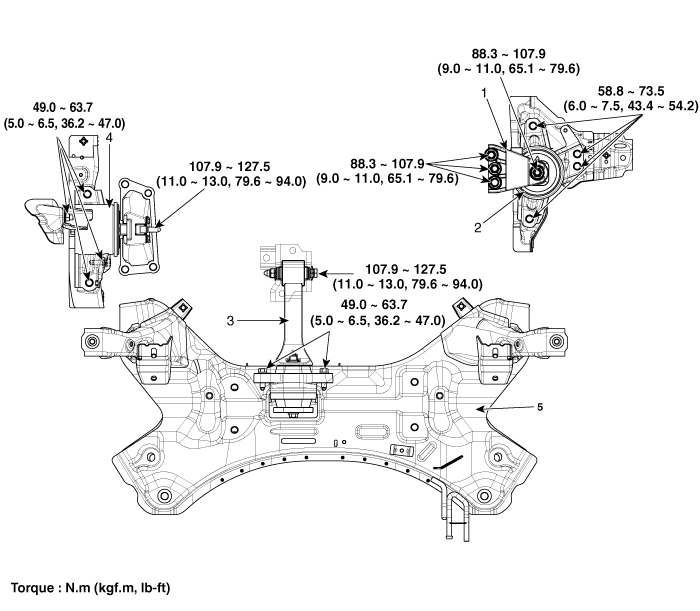

Components

1. Engine mounting support bracket
2. Engine mounting bracket
3. Roll rod bracket
4. Transaxle mounting bracket
5. Sub frame
