Kia Optima Hybrid: Cylinder Block / Cylinder Block Components and Components Location

Components

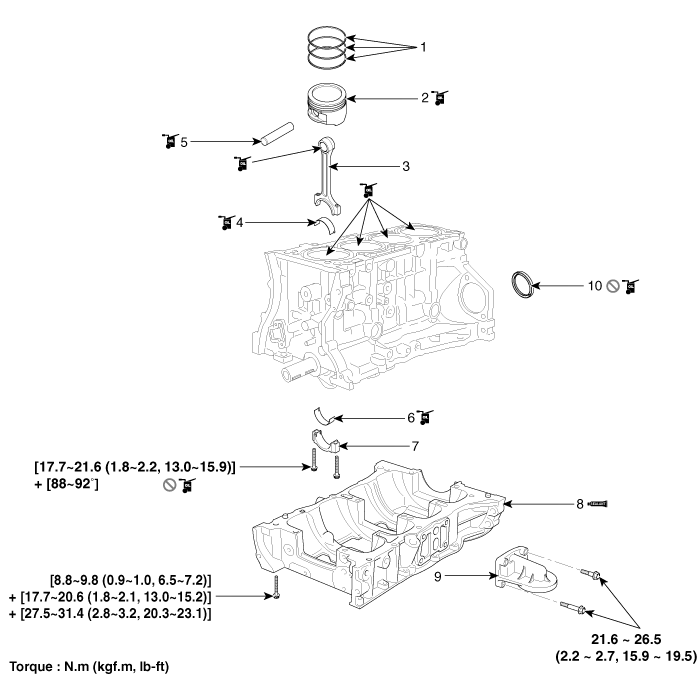

1. Piston ring
2. Piston
3. Connecting rod
4. Connecting rod upper bearing
5. Piston pin
6. Connecting rod lower bearing
7. Connecting rod bearing cap
8. Ladder frame
9. Oil filter bracket
10. Crankshaft rear oil seal

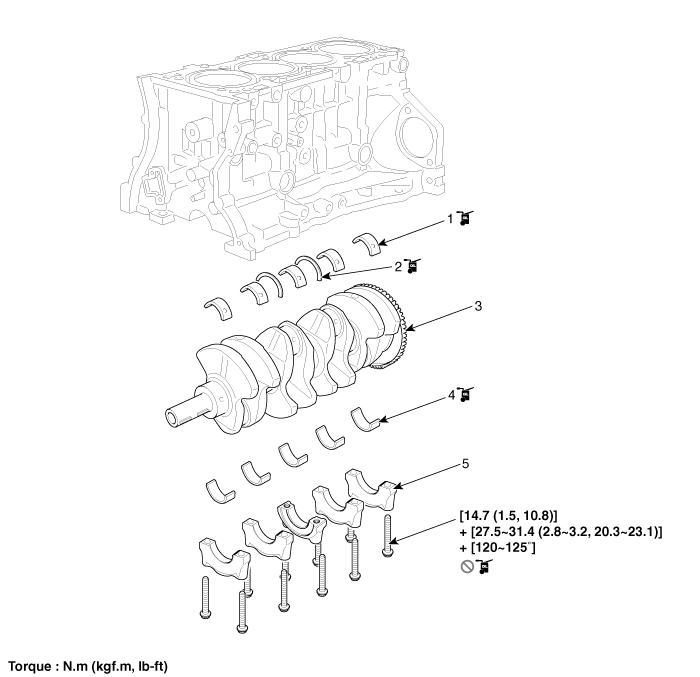

1. Crankshaft upper bearing
2. Thrust bearing
3. Crankshaft
4. Crankshaft lower bearing
5. Main bearing cap
